Air Monitoring
Air monitoring tracks air quality to detect pollutants and ensure environmental and public health safety.
Air monitoring tracks air quality to detect pollutants and ensure environmental and public health safety.

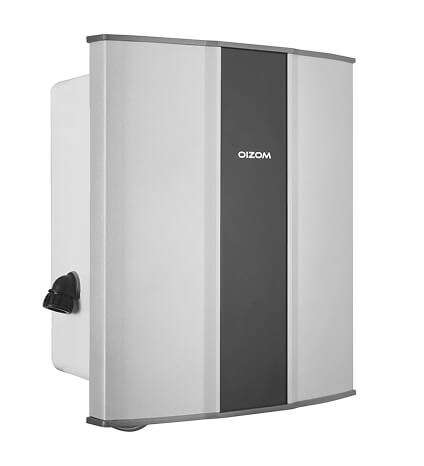

Polludrone® is a Continuous Ambient Air Quality Monitoring System (CAAQMS). It is capable of monitoring various environmental parameters related to air quality, noise, odour, weather, radiation. It measures the particulate matter and gaseous concentrations in the ambient air in real-time. Using external probes, it can also monitor other auxiliary monitoring. The installation of Polludrone® is very simple.
The device can be mounted on a pole or street mast using clamps, and then connected to specialized software that allows monitoring of the emission of the desired parameters.
Compatible to charge internal battery using solar power.
Each equipment carries its unique identity with geo-tagging through
IP66 Grade (certified) enclosure for endurance against harsh weather.
On-site device calibration capability using on-device calibration software.
Continuous monitoring and real-time data transfer at configurable intervals
Internal data storage capacity of upto 8 GB or 90 days.
Supports a wide range of connectivity options like GSM / GPRS / WiFi / LoRa / NBIoT / Ethernet / Modbus.
Light-weight and compact system that can be installed at 12-15 feet (4-5 m) height.
Automatically upgradeable from a central server without any onsite visit.
Plug and play design for ease of implementation.
Comes with a security system to avoid tampering / malfunction / sabotage.
Works on innovative e-breathing technology for higher data accuracy.
Polludrone® is an ideal choice for smart cities as well as urban infrastructure applications like roads and highways, tunnels, smart campus and airport monitoring. It is easily integrable with a Smart Pole / Intelligent Pole.
Effortless installation with versatile mounting arrangements.
Gives accurate readings in real-time to detect concentrations in ambient air.
Visualise and analyse data in the cloud. Easy data integration via APIs
A wide range of options of wired and wireless connectivity.
Compatible with a wide range of parameters including PM, gases and meteorological parameters
Durable enclosure to sustain extreme climatic conditions.
| Variants | Applications | Parameters |
| Polludrone® Lite | General Purpose | PM2.5, PM10, CO2, CO, Noise, Light, UV-Radition, Temperature, Humidity, Pressure |
| Polludrone® Smart | Extensive | PM2.5, PM10, CO2, CO, SO2, NO, NO3, O3, Noise, Light, UV-Radition, Temperature, Humidity, Pressure |
| Polludrone® Pro | Critical | PM1, PM2.5, PM10, PM100 (TSP), CO2, CO, SO2, NO, NO3, O3, H2S, Noise, Light, UV-Radition,Temperature, Humidity, Pressure |
| Polludrone® Custom | As per request | Choice of Particulate Matter, Noise and upto 9 gases with External Modules. |
The proper selection of location is crucial for optimizing data collection. It depends on the specifics of the project and should be aligned with the monitoring objectives, as recommended by EQUIPO guidelines.

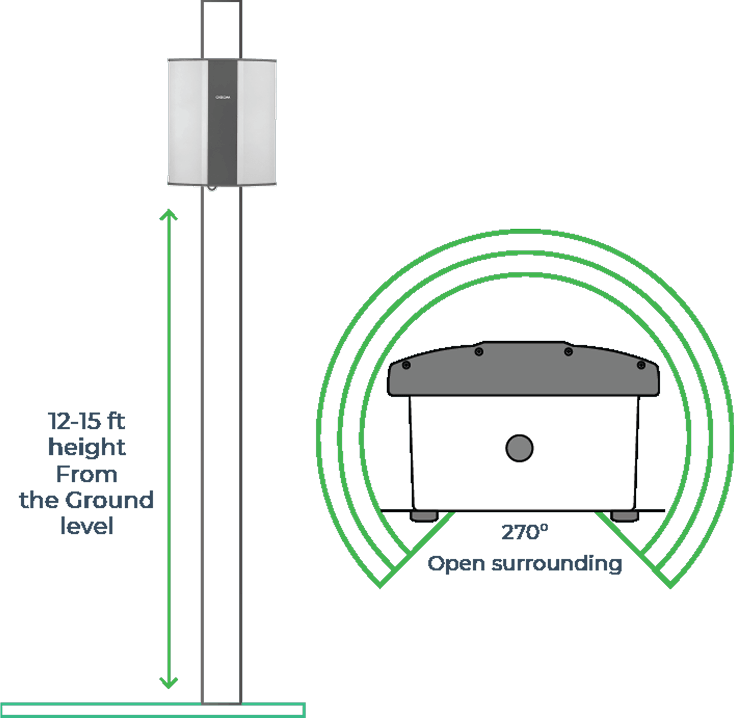

| Preferred Mounting | Pole / Wall (preferably 270° open surrounding) |
| Installation Height | 12-15 feet (4-5 meters) |
| Direction | As per maximum direct sunlight exposure |
| Power Availability | Constant AC / DC supply within a 2-meter range from the unit or solar panel |
| Network Availability | Uninterrupted network connection |
Laboratory Calibration
All air quality monitoring systems are calibrated at the ISO
On- site Calibration
Calibration of Oizom® devices is performed at the customer's site
An on-device data software enables users to Access the data, configure networks and sensors without any dependency on the internet. Users can also connect their smart devices to Polludrone® and view real-time data, perform on-site calibration, change network configuration and change sensor configuration.
EnvizomTM Features
Easy to Set Up
Real-time data
Easy to share
Smart alerts
User friendly interface
Odosense® is a real-time odour emission tracking solution. Odosense® continuously detects, measures and monitors the odourful gaseous contaminants. Oizom® Odour Monitoring Solution comprises of a network of e-noses (Odosense®) positioned on the periphery of the site. The solution incoporates Odour Atmospheric Dispersion Modelling for predicting odour impact on the surrounding area depending on meteorological conditions. With the help of meteorological data, Odosense® can trace the odourant dispersion plume incited by conditions like wind speed and wind direction. Odosense® is a fully solar-powered solution with wireless data transmission. This makes it an ideal choice for landfill sites, wastewater treatment facilities, fertilizers, paper-pulp industries and soil-treatment sites, etc
Supports a wide range of connectivity options like GSM/ WiFi/ GPRS/Modbus/ Ethernet
Compatible to charge internal battery using solar power
IP66 Grade (certified) enclosure for endurance against harsh weather
Continuous monitoring and real-time data transfer at configurable interval
Automatically upgradeable from a central server without any onsite visit.
Comes with a security system to avoid tampering / malfunction / sabotage
Each equipment carries its unique identity with geo-tagging through wireless configuration
Capability to calibrate the device on-site at the client's location.
Made of high-grade engineering-metal and composite polymers for a long life.
Light-weight and compact system that can be installed at 4-5 m height.
Plug and play design for ease of implementation.
Works on innovative e-breathing technology for higher data
Odosense® is an ideal choice for smart cities as well as urban infrastructure applications like roads and highways, tunnels, smart campus and airport monitoring. It is easily integrable with a Smart Pole / Intelligent Pole.
Effortless installation with versatile mounting arrangements.
Gives accurate readings in real-time to detect concentrations in ambient air.
Visualise and analyse data in the cloud. Easy data integration via APIs
A provision to add Wind Direction, Wind Speed sensor for accurate source tracking of pollutants.
Compatible with a wide range of parameters including PM, gases and meteorological parameters
Durable enclosure to sustain extreme climatic conditions.
Pollution monitoring at strategic locations in a smart-city empowers city authorities to obtain actionable insights for pollution control.
Diffussion of odorful glases form landfilles can create nuisance in the neighborhood. The odour level can be monitored to carry out precautionary steps.
Odosense® helps operators assess the impacts of odours from their livestock operations and develop and implement the best strategies to reduce emissions and their impact.
Pollution and noise monitoring at taxiways and terminal surroundings facilitates airport authorities to analyze its impact on travellers and surrounding neighbourhoods
| Variants | Applications | Parameters |
| Odosense® Lite | STP, WWTP | SO2, H2S, NH3, Temperature, Humidity, Pressure |
| Odosense® Smart | Solid Waste | SO2, H2S, NH3, CH3SH, TVOC), Temperature, Humidity, Pressure |
| Odosense® Pro | Industrial, ETP | SO2, H2S, NH3, CH3SH, TVOC, CH2O, NO2, CI2, Temperature, Humidity, Pressure |
| Odosense® Custom | As per request | Choice of upto 9 gases with External Modules. |
The proper selection of location is crucial for optimizing data collection. It depends on the specifics of the project and should be aligned with the monitoring objectives, as recommended by EQUIPO guidelines.
| Preferred Mounting | Pole / Wall (preferably 270° open surrounding) |
| Installation Height | 12-15 feet (4-5 meters) |
| Direction | As per maximum direct sunlight exposure |
| Power Availability | Constant AC / DC supply within a 2-meter range from the unit or solar panel |
| Network Availability | Uninterrupted network connection |
Laboratory Calibration
All air quality monitoring systems are calibrated at the ISO
On- site Calibration
Calibration of Oizom® devices is performed at the customer's site
An on-device data software enables users to Access the data, configure networks and sensors without any dependency on the internet. Users can also connect their smart devices to Polludrone® and view real-time data, perform on-site calibration, change network configuration and change sensor configuration.
EnvizomTM Features
Easy to Set Up
Real-time data
Easy to share
Smart alerts
User friendly interface
Pollusense is a Portable Air Quality Monitoring System that measures multiple toxic gases and particulate
matter along with noise. The device offers a range of customizable parameters, making it ideal for various applications such as environmental impact assessments, industrial monitoring, environmental audits, mining, indoor air quality assessment, leak detection, construction sites, landfills, livestock management, and research.
Pollusense is a compact and briefcase-sized device that can be carried anywhere to get accurate air quality data.
It also has an on-device display that lets users check parameters directly. The data collected by Pollusense can also be accessed through Oizom’s Envizom™ environmental monitoring software, enabling comprehensive data visualisation and analytics.
View data directly on the device without relying on any smart devices
Continuous monitoring and real-time data transfer at configurable intervals
Lightweight and compact system that can be easily set up and transported
Carry anywhere you go and monitor air quality anytime.
Durable enclosure designed to withstand extreme weather conditions
Supports a wide range of connectivity options GSM/LTE/WiFi/LoRa/Ethernet/-Satellite.
Receive timely notifications when parametrem exceed predefined limits
Works on innovative e-breathing technology for higher data accuracy.
Internal data storage capacity of up to 16 GB or 90 days.
Geo-tagging allows you to get the exact location of the device, consisting of latitude and longitude coordinates.
Monitor the environmental parameters up to 24 hours without worrying about battery life.
Set up the device in no time and start getting accurate data.
Pollusense is a Portable Air Quality Monitoring System that measures multiple toxic gases and particulate matter along with noise.
Get real-time Gas data within 30 minutes* and Noise and PM data within 5 minutes.
Easily deployable at the surface level or on industrial tripods for real-time monitoring.
Monitoring Compatible with a wide range of parameters, including PM, Gases,
Secure platform for visualising and analysing data with easy API integration for immediate action.
Durable enclosure to sustain extreme climatic conditions.
It is easy to carry, transport, and deploy at any location.
Comprehensively assess gaseous emissions and the environmental impact of industrial activities to make data-driven measures for minimising their fatal effect.
Conduct environmental audits and improve your ESG scores by optimising the environmental health and safety of the citizens.
Monitor odour intensity at wastewater treatment plants to regulate odour emission by appropriate maintenance on time.
Monitor harmful gas emissions and dust levels during mining activities to protect the working environment and nearby communities.
Proper location selection is critical for optimised data collection. It varies as per the purpose of the project. The selection of locations should be based on monitoring

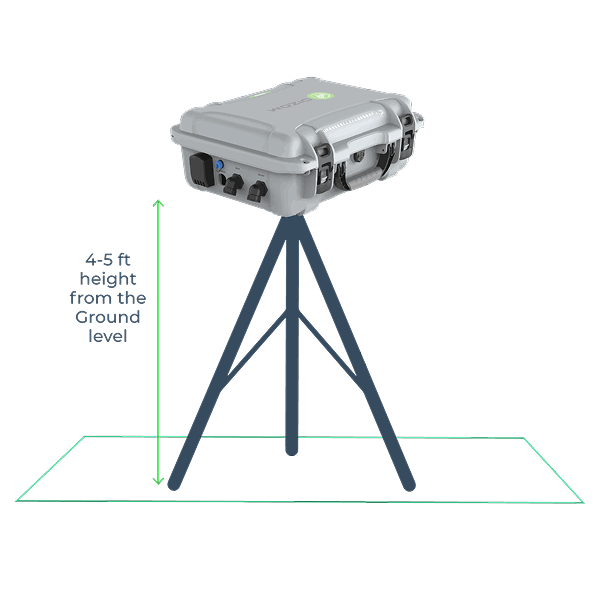

| Preferred Mounting | Tripod Mount / Surface Level (preferably 270° open surrounding) |
| Installation Height | 4-5 feet (1.2-1.5 meters) |
| Direction | As per minimum direct sunlight exposure |
| Setup | Recommended to setup the device under shade if the temp is above 35°C |
| Network Availability | Uninterrupted network connection |

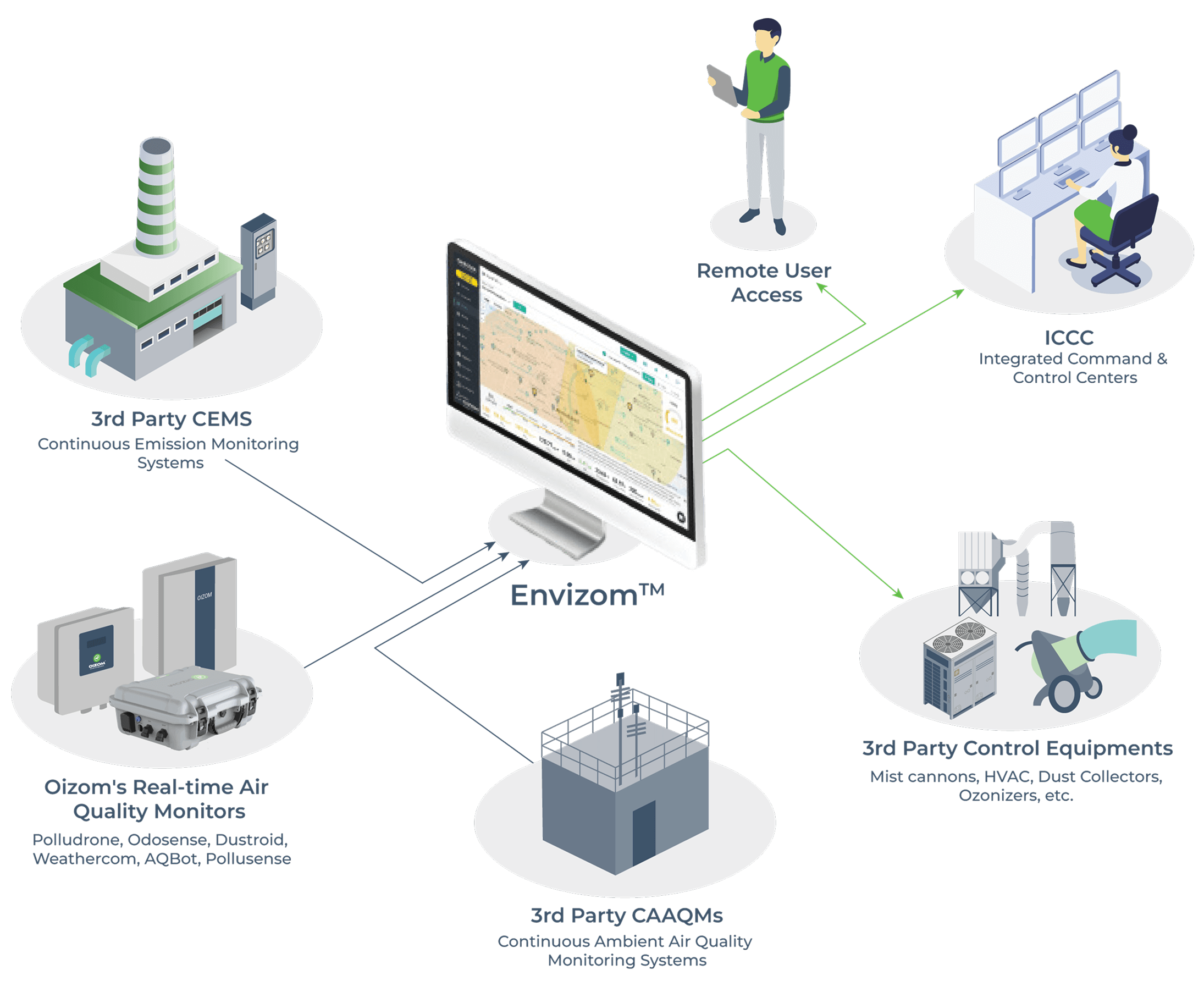

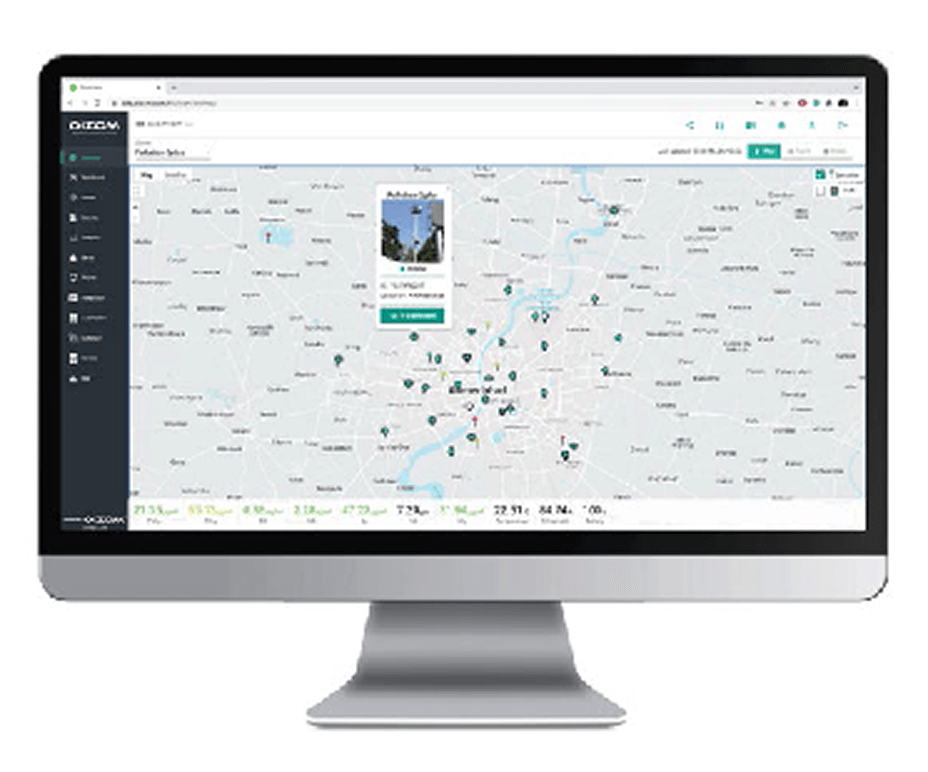

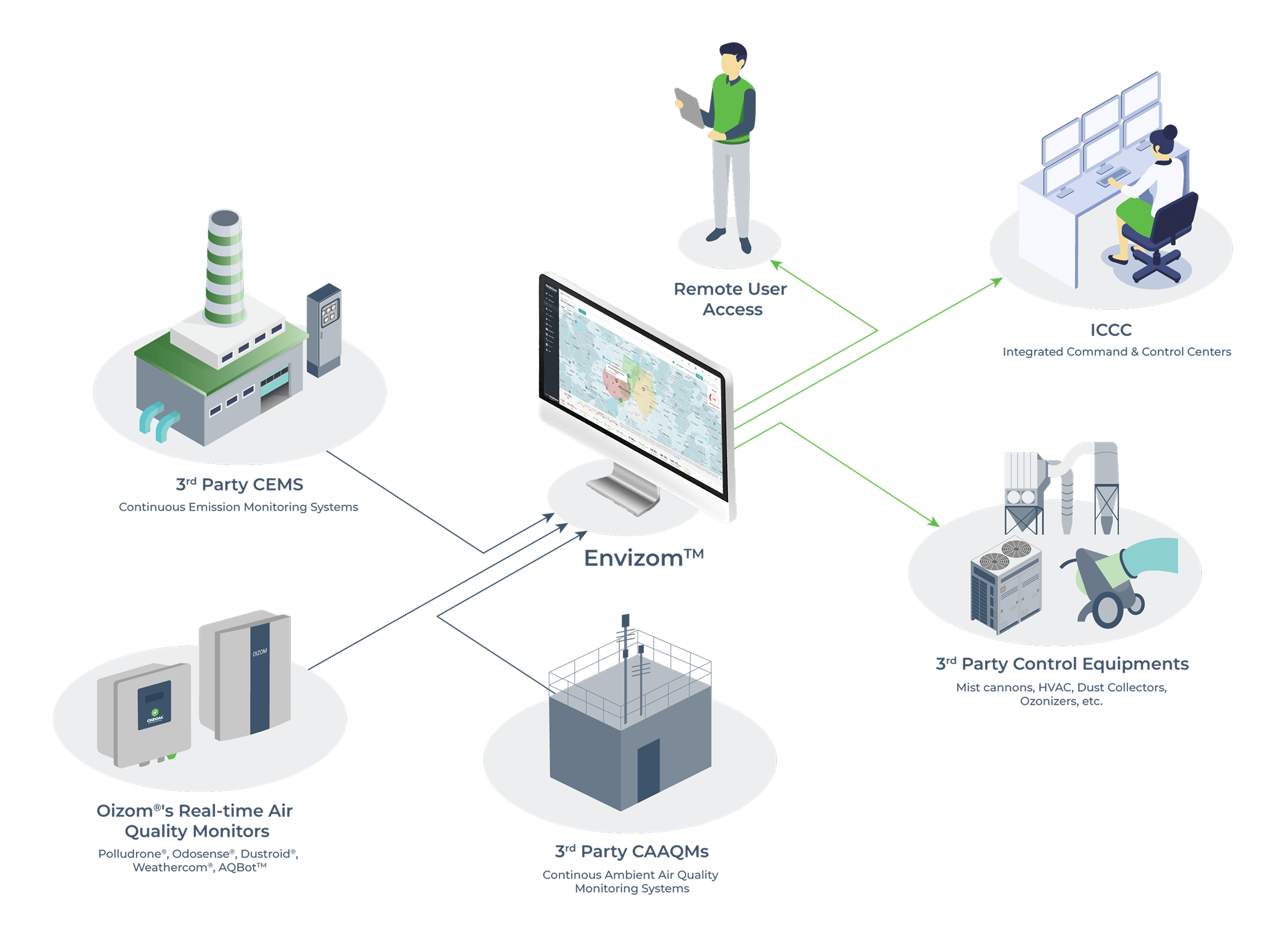

Envizom™ is a real-time environmental data visualization and analytics platform. Powered by AI and machine learning, it delivers accurate air quality data and actionable insights for informed decision-making. Data is stored on secure HTTPS servers or locally, depending on user preference.
Envizom™ is a real-time environmental data visualization and analytics platform. Powered by AI and machine learning, it delivers accurate air quality data and actionable insights for informed decision-making. Data is stored on secure HTTPS servers or locally, depending on user preference.
EnvizomTM Capabilities
Easy to Set Up
Real-time data
Easy to share
Smart alerts
User friendly interface
