Air Monitoring

Air monitoring tracks air quality to detect pollutants and ensure environmental and public health safety.

Polludrone® - Ambient Air Quality Monitoring System

Polludrone® is a Continuous Ambient Air Quality Monitoring System (CAAQMS). It is capable of monitoring various environmental parameters related to air quality, noise, odour, weather, radiation. It measures the particulate matter and gaseous concentrations in the ambient air in real-time. Using external probes, it can also monitor other auxiliary monitoring.

The installation of Polludrone® is very simple.

The device can be mounted on a pole or street mast using clamps, and then connected to specialized software that allows monitoring of the emission of the desired parameters.

Product Features

01
Solar Powered with Battery Backup

Compatible to charge internal battery using solar power.

02
Identityt And Configuration

Each equipment carries its unique identity with geo-tagging through

03
Weather Resistant

IP66 Grade (certified) enclosure for endurance against harsh weather.

04
On-device Calibration

On-site device calibration capability using on-device calibration software.

05
Real-Time Data

Continuous monitoring and real-time data transfer at configurable intervals

06
Internal Storage

Internal data storage capacity of upto 8 GB or 90 days.

07
Network Agnostic

Supports a wide range of connectivity options like GSM / GPRS / WiFi / LoRa / NBIoT / Ethernet / Modbus.

08
Compact

Light-weight and compact system that can be installed at 12-15 feet (4-5 m) height.

09
Over-The-Air Update

Automatically upgradeable from a central server without any onsite visit.

10
Retrofit Design

Plug and play design for ease of implementation.

11
Tamper Proof

Comes with a security system to avoid tampering / malfunction / sabotage.

12
Patented Technology

Works on innovative e-breathing technology for higher data accuracy.

Polludrone®

Polludrone® is an ideal choice for smart cities as well as urban infrastructure applications like roads and highways, tunnels, smart campus and airport monitoring. It is easily integrable with a Smart Pole / Intelligent Pole.

Key Benefits

01
Easy to install

Effortless installation with versatile mounting arrangements.

02
Accurate Data

Gives accurate readings in real-time to detect concentrations in ambient air.

03
Cloud Platform

Visualise and analyse data in the cloud. Easy data integration via APIs

04
Seamless Connectivity

A wide range of options of wired and wireless connectivity.

05
Multi-parameter

Compatible with a wide range of parameters including PM, gases and meteorological parameters

06
Robust And Rugged

Durable enclosure to sustain extreme climatic conditions.

Smart City

Pollution monitoring at strategic locations in a smart-city empowers city authorities to obtain actionable insights for pollution control.

Roads And Highways

Pollution monitoring at roads and tunnels can help create pollution mitigation action plan to control vehicular emissions.

Smart Campus

Pollution monitoring at key locations on campus allows stakeholders to spread awareness about environmental conditions of the premises.

Airports

Pollution and noise monitoring at taxiways and terminal surroundings facilitates airport authorities to analyze its impact on travellers and surrounding neighbourhoods.

Variants Applications Parameters
Polludrone® Lite General Purpose PM2.5, PM10, CO2, CO, Noise, Light, UV-Radition, Temperature, Humidity, Pressure
Polludrone® Smart Extensive PM2.5, PM10, CO2, CO, SO2, NO, NO3, O3, Noise, Light, UV-Radition, Temperature, Humidity, Pressure
Polludrone® Pro Critical PM1, PM2.5, PM10, PM100 (TSP), CO2, CO, SO2, NO, NO3, O3, H2S, Noise, Light, UV-Radition,Temperature, Humidity, Pressure
Polludrone® Custom As per request Choice of Particulate Matter, Noise and upto 9 gases with External Modules.

Odosense® - Odor Monitoring System
Odosense® is a real-time odour emission tracking solution. Odosense® continuously detects, measures and monitors the odourful gaseous contaminants. Oizom® Odour Monitoring Solution comprises of a network of e-noses (Odosense®) positioned on the periphery of the site. The solution incoporates Odour Atmospheric Dispersion Modelling for predicting odour impact on the surrounding area depending on meteorological conditions. With the help of meteorological data, Odosense® can trace the odourant dispersion plume incited by conditions like wind speed and wind direction. Odosense® is a fully solar-powered solution with wireless data transmission. This makes it an ideal choice for landfill sites, wastewater treatment facilities, fertilizers, paper-pulp industries and soil-treatment sites, etc

Product Features

01
Network Agnostic

Supports a wide range of connectivity options like GSM/ WiFi/ GPRS/Modbus/ Ethernet

02
Solar Powered with Battery Backup

Compatible to charge internal battery using solar power

03
Weather Resistant

IP66 Grade (certified) enclosure for endurance against harsh weather

04
Real-Time Data

Continuous monitoring and real-time data transfer at configurable interval

05
Over-The-Air Update

Automatically upgradeable from a central server without any onsite visit.

06
Tamper Proof

Comes with a security system to avoid tampering / malfunction / sabotage

07
Identy and configuration

Each equipment carries its unique identity with geo-tagging through wireless configuration

08
On-device Calibration

Capability to calibrate the device on-site at the client's location.

09
Ultimate Durability

Made of high-grade engineering-metal and composite polymers for a long life.

10
Compact

Light-weight and compact system that can be installed at 4-5 m height.

11
Retrofit design

Plug and play design for ease of implementation.

12
Patented Technology

Works on innovative e-breathing technology for higher data

Odosense®

Odosense® is an ideal choice for smart cities as well as urban infrastructure applications like roads and highways, tunnels, smart campus and airport monitoring. It is easily integrable with a Smart Pole / Intelligent Pole.

Key Benefits

01
Easy to install

Effortless installation with versatile mounting arrangements.

02
Accurate Data

Gives accurate readings in real-time to detect concentrations in ambient air.

03
Cloud Platform

Visualise and analyse data in the cloud. Easy data integration via APIs

04
Meteorological Capability

A provision to add Wind Direction, Wind Speed sensor for accurate source tracking of pollutants.

05
Multi-parameter

Compatible with a wide range of parameters including PM, gases and meteorological parameters

06
Robust And Rugged

Durable enclosure to sustain extreme climatic conditions.

Wastewater

Pollution monitoring at strategic locations in a smart-city empowers city authorities to obtain actionable insights for pollution control.

Landfills

Diffussion of odorful glases form landfilles can create nuisance in the neighborhood. The odour level can be monitored to carry out precautionary steps.

Livestock

Odosense® helps operators assess the impacts of odours from their livestock operations and develop and implement the best strategies to reduce emissions and their impact.

Industries

Pollution and noise monitoring at taxiways and terminal surroundings facilitates airport authorities to analyze its impact on travellers and surrounding neighbourhoods

Variants Applications Parameters
Odosense® Lite STP, WWTP SO2, H2S, NH3, Temperature, Humidity, Pressure
Odosense® Smart Solid Waste SO2, H2S, NH3, CH3SH, TVOC), Temperature, Humidity, Pressure
Odosense® Pro Industrial, ETP SO2, H2S, NH3, CH3SH, TVOC, CH2O, NO2, CI2, Temperature, Humidity, Pressure
Odosense® Custom As per request Choice of upto 9 gases with External Modules.

Functional Specifications

The proper selection of location is crucial for optimizing data collection. It depends on the specifics of the project and should be aligned with the monitoring objectives, as recommended by EQUIPO guidelines.

Preferred Mounting Pole / Wall (preferably 270° open surrounding)
Installation Height 12-15 feet (4-5 meters)
Direction As per maximum direct sunlight exposure
Power Availability Constant AC / DC supply within a 2-meter range from the unit or solar panel
Network Availability Uninterrupted network connection

Data and Calibration

Laboratory Calibration

All air quality monitoring systems are calibrated at the ISO

On- site Calibration

Calibration of Oizom® devices is performed at the customer's site

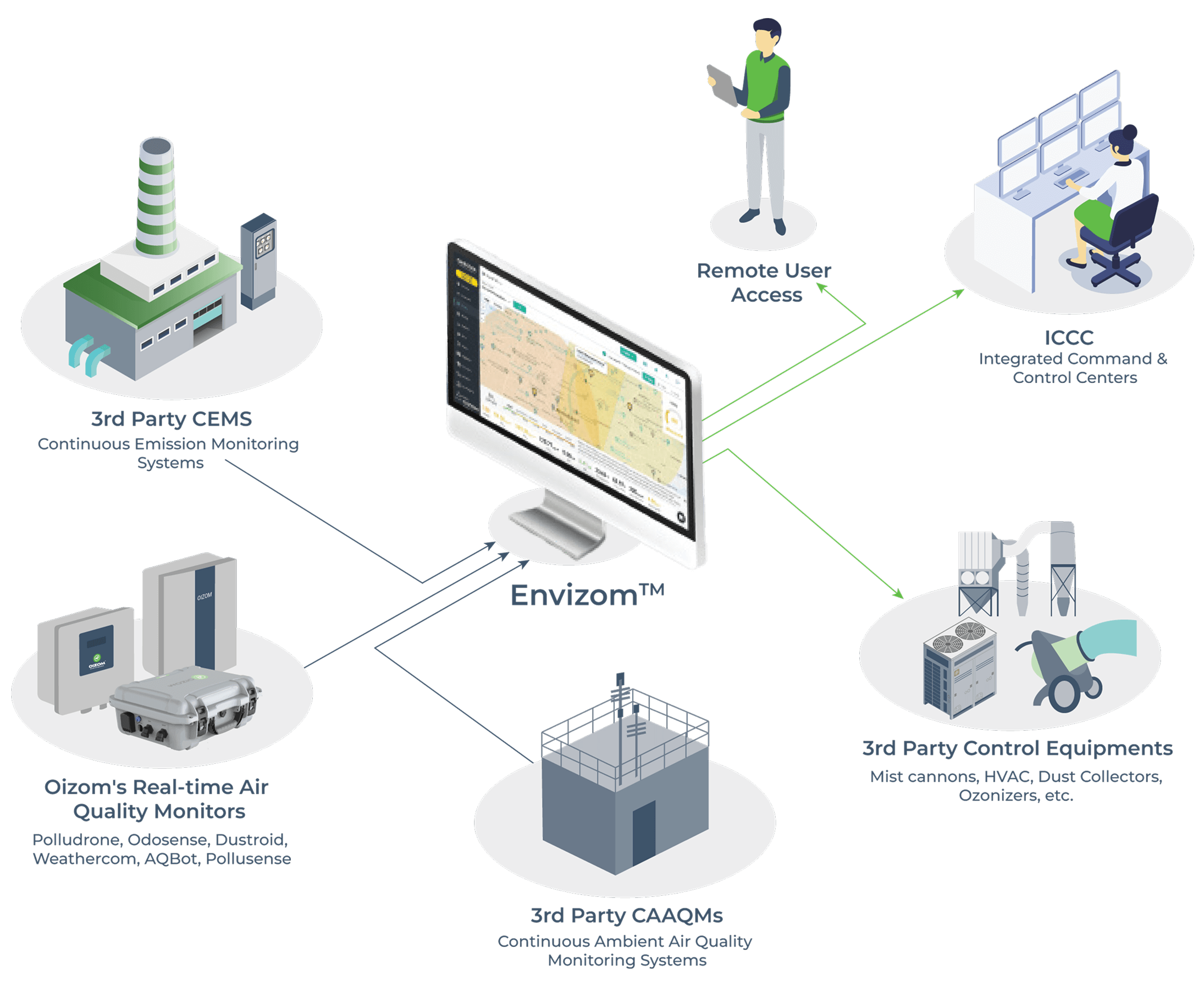

Solution Architecture

Envizom Air Quality Software

An on-device data software enables users to Access the data, configure networks and sensors without any dependency on the internet. Users can also connect their smart devices to Polludrone® and view real-time data, perform on-site calibration, change network configuration and change sensor configuration.

EnvizomTM Features

Easy to Set Up
Real-time data
Easy to share
Smart alerts
User friendly interface
